H-PAK Thermal Element Capabilities
H-PAK Thermal Element Capabilities

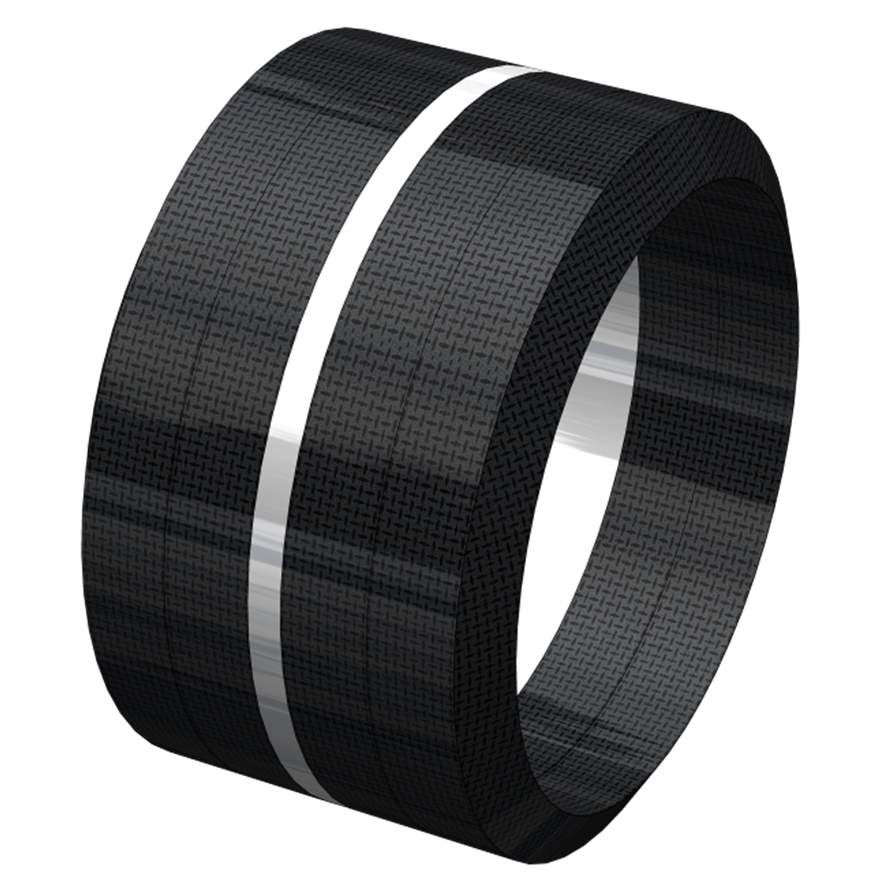

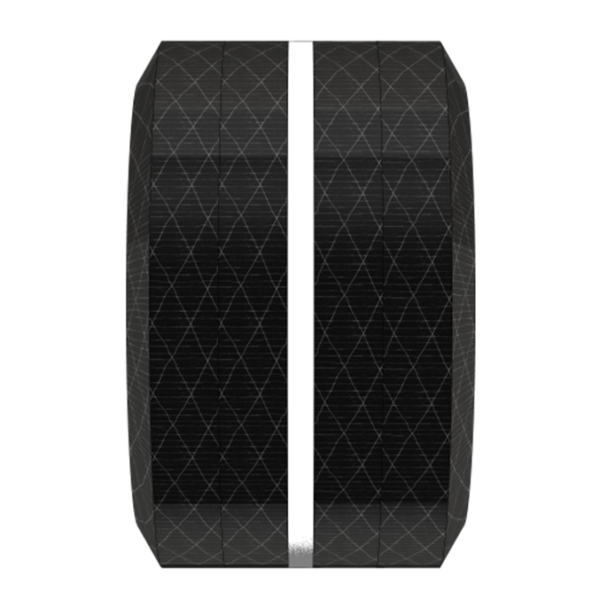

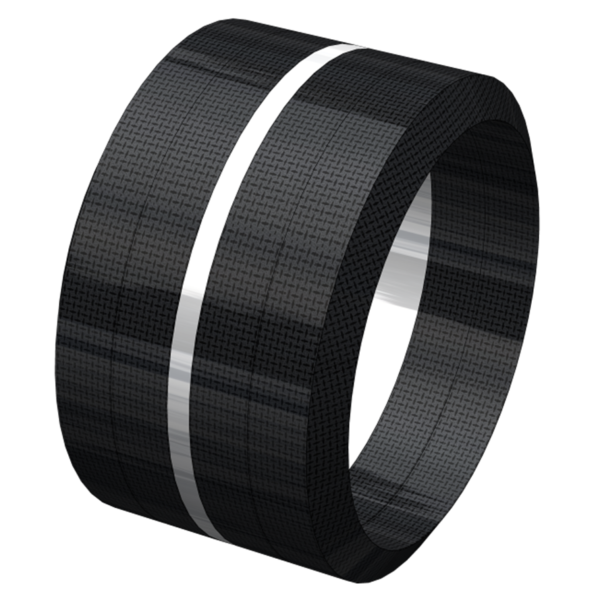

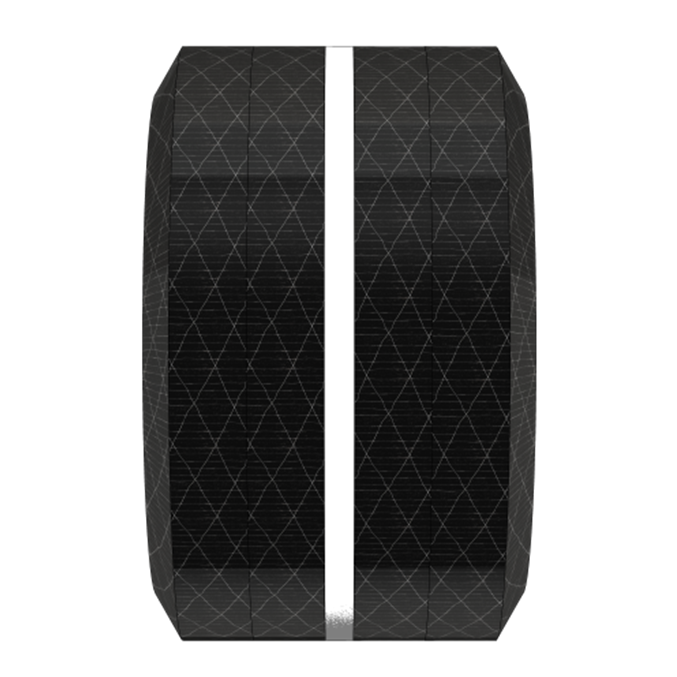

The ‘H-PAK’ element is Renown’s premium grade thermal seal. Third party testing has been completed to certify the temperature and pressure rating. The H-Pak can be ran on most of the RDS liner packers as well as some conventional equipment. With a 330°C (626°F) and 5000psi (34,400kpa) rating, it can withstand some of the harshest environments. This element has also been scrub tested to prove it can deal with thermal expansion without compromise.
Features
- Re-enforced design using stainless steel to withstand pipe movement and expansion
- Extreme thermal capabilities
- Soft set capable, only 40,000lbs pack off force required
- Third party tested
- Available in most sizes
- Scrub tested!
Third party test report available to customers
