Retrievable Bridge Plug
Retrievable Bridge Plug

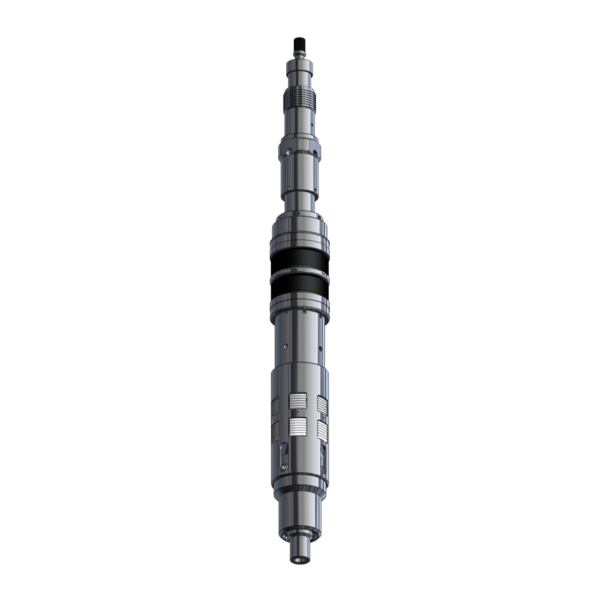

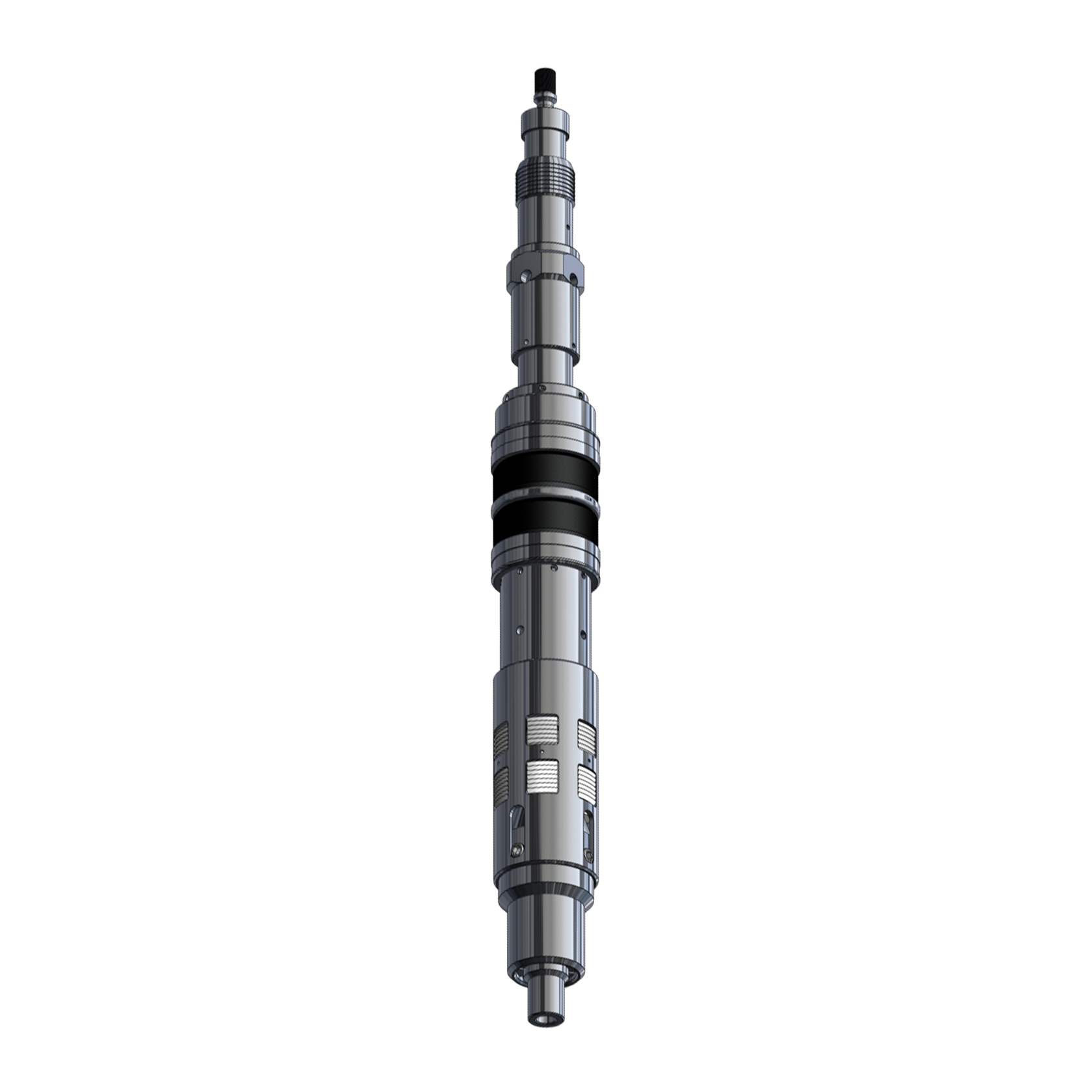

Renown’s Retrievable Bridge Plugs is a product designed to isolate the well bore when performing treatments such as fracturing, acidifying, surface equipment maintenance, or temporary suspension of a producing formation. Renown offers a variety style of Retrievable Bridge Plugs including Scorpion, CW, and WR. They can be set using electric wireline, coil tubing, drill pipe, or tubing. All Retrievable Bridge Plugs can be set up to accommodate different styles of well bores such as thermal applications for a variety of temperatures, heavy weight horizontal liners, sour wells, and snub in operations. Avaliable in an economical 2 element stacks that are 7K rated.
Features
- Field proven design.
- Compatible with common Baker-20.
- Fully adjustable setting/equalizing shears.
- Variety of elastomers rated up to 454°C.
- Equalization valve opens before elements and slips unsetting.
- Economically priced.
- Multiple sizes available from 2-3/8” (60mm) to 13-3/8” (340mm).
- Large equalization ports.
