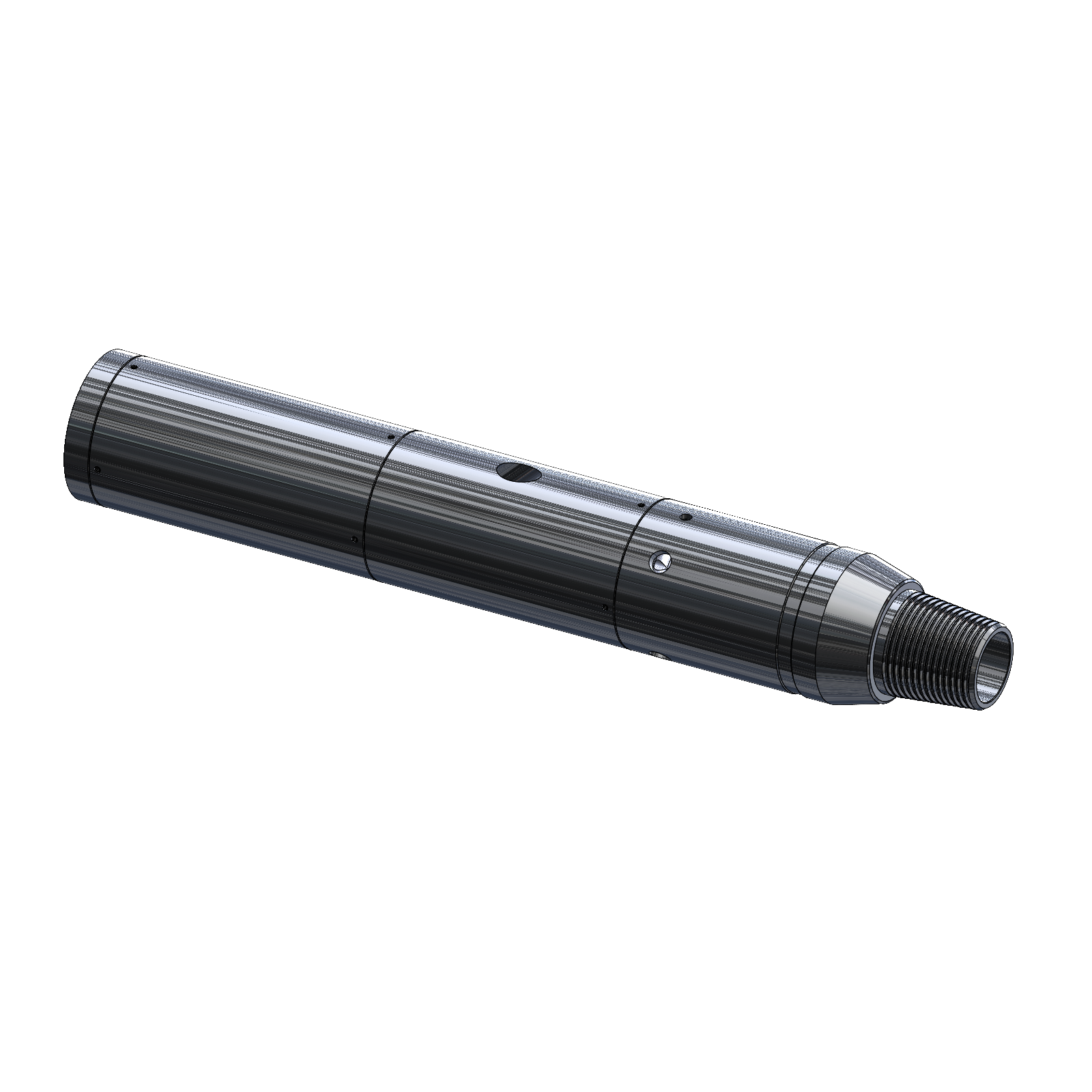

‘DTC’ Flow Sub

PRODUCT NUMBER: 10-104-XXXX-00

Renown’s ‘DTC’ Drop-Thru Crisscross Flow Sub is used alongside Renown’s patented one-trip isolation system to allow for gravel packing, liner isolation, and pressure testing all in one-trip of pipe. The tool allows forward circulation out the bottom of the inner-string to help achieve setting depths in gravel pack operations. Once on depth a shifting ball is dropped directing circulation flow out the side of the tool, allowing sand or gravel overtop of the liner packer. Once a satisfactory volume of slurry is pumped, a secondary shifting ball is dropped to close the annular directed flow and will release the initial shifting ball to be seated below.

Features

  • Adjustable Shear
  • 2 Stages, 2 Ball Drops, 3 Shear Sleeves
  • Thermal Capable
  • Locking Latch
  • Large Circulating Ports
  • Internal By-Pass System
  • Fully Balanced Piston
  • Allows initial ball to set in achieve hydraulic pressure in running tools below
  • Premium Threads Available
