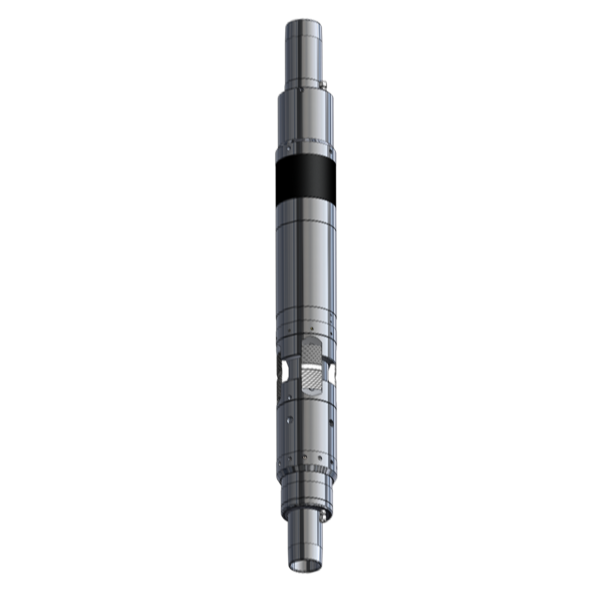

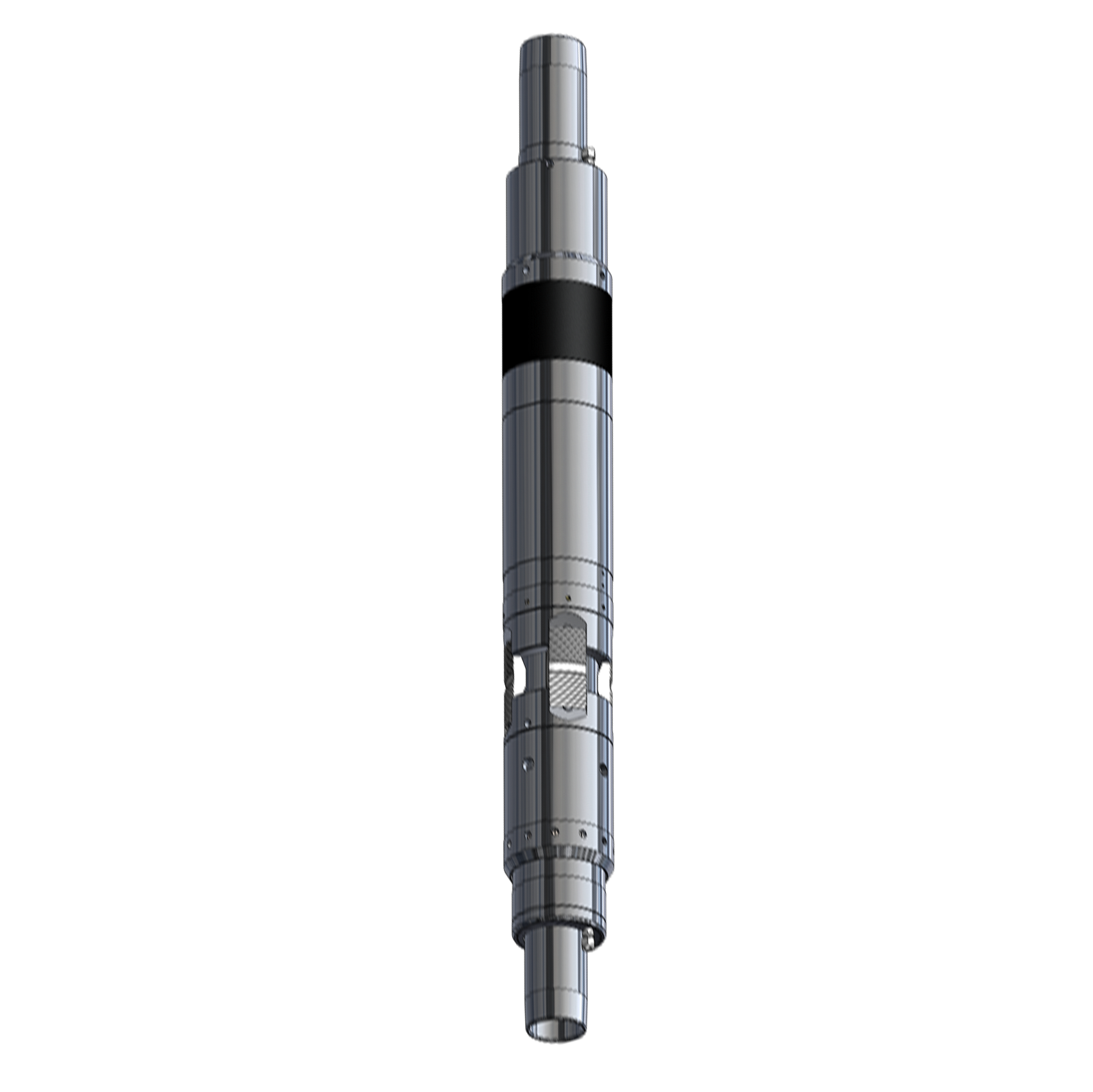

HDSR-FT Feed Thru Packer
HDSR-FT Feed Thru Packer
Renown is proud to release its feed thru packer. The HDSR-FT packer is hydraulic set and tension release. All shear values can be adjusted and multiple feed lines can be ran. Unlike most of our competitors, our 7″ (177mm) model allows a 3 1/2″ (88.9mm) mandrel and up to 3 additional feed lines . This packer is built off of Renown proven H-series liner top designs and has an excellent run history.
Features
- Field proven design is versatile
- Hydraulic set
- Fully adjustable setting and releasing shears
- Variety of elastomers rated up to 454°C
- Bi-Directional slips
- Economically priced.
- Multiple sizes available
- Large port quantity
- Available in 1/4” and 3/8”
