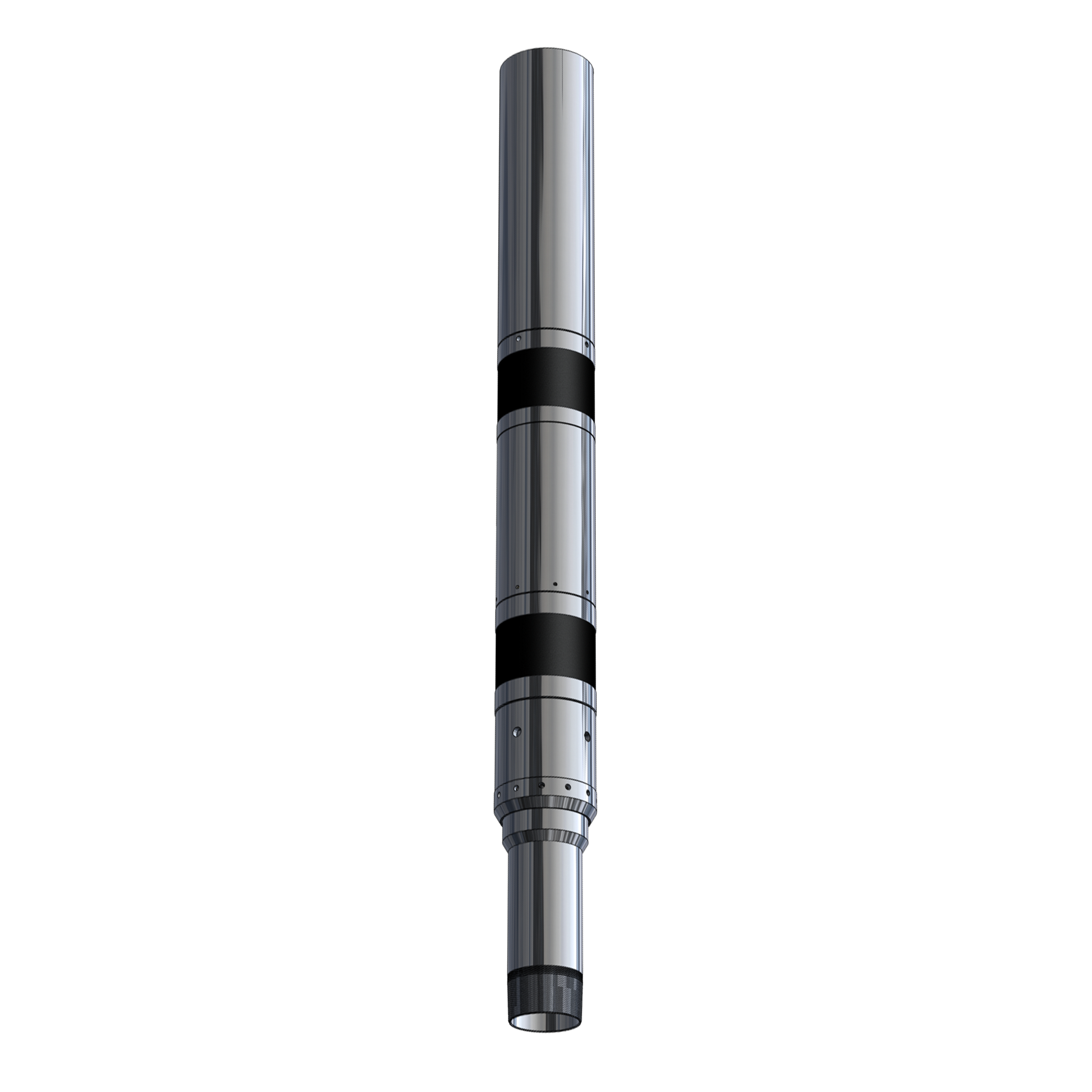

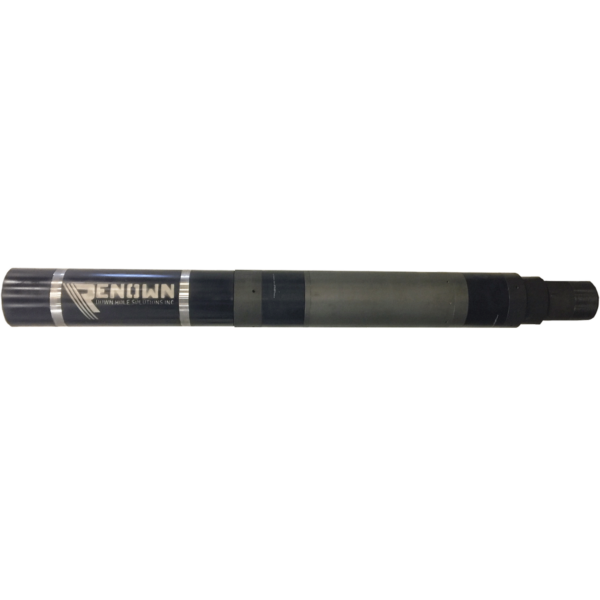

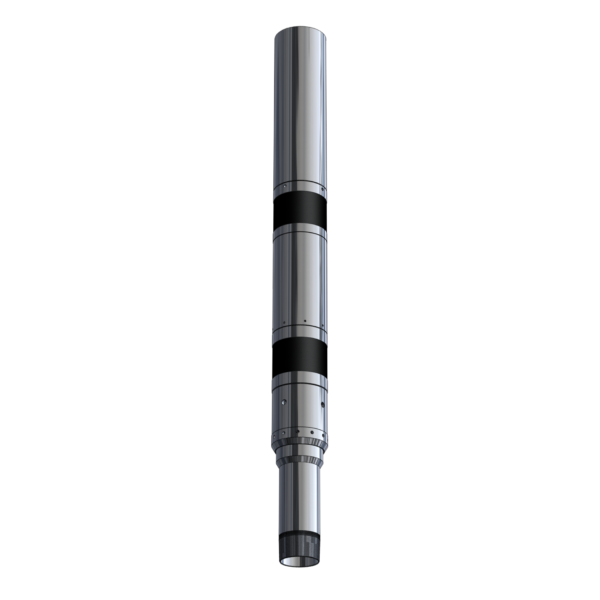

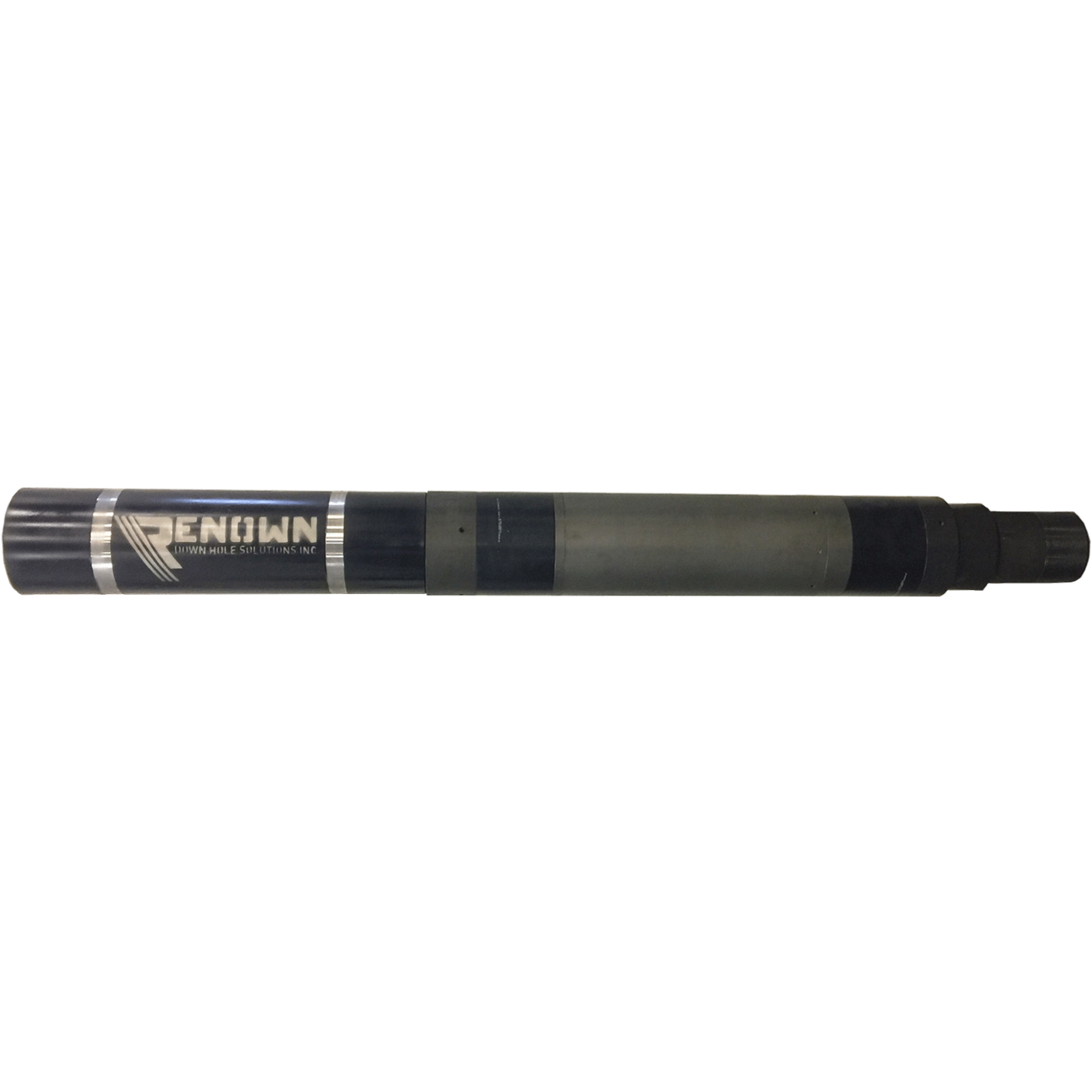

Model ‘HDO’ Mechanical Liner Hanger
Model ‘HDO’ Mechanical Liner Hanger
The large piston area compresses both individual elements creating a tandem seal. This allows a significantly stronger seal area with maximum pack-off force making it a superior horizontal liner packer. The dual sealing system endures the harshest of expansion and scrubbing environments.
Third party thermal testing has been completed to prove a capable pressure test when scrubbing up and down the casing walls due to thermal expansion and contraction in environments over 330°C (626°F).
Features
- Dual Elements creating a tandem seal
- Open hole sealing capability
- Adjustable shear
- Thermal capable
- Sets in high debris well bore
- Can be ran in tandem with Renown’s ‘RIP’ plug system (Patented)
- Hydraulic set, hydraulic release w/ emergency rotational shear release
- Full bore design for no restriction in liner
- High pack-off on element system for superior seal
- All shoulders are bevelled for easy entry of downhole equipment into the liner top
- Upper Tieback Barrel can be built in .5m intervals to a maximum of 3.5m
