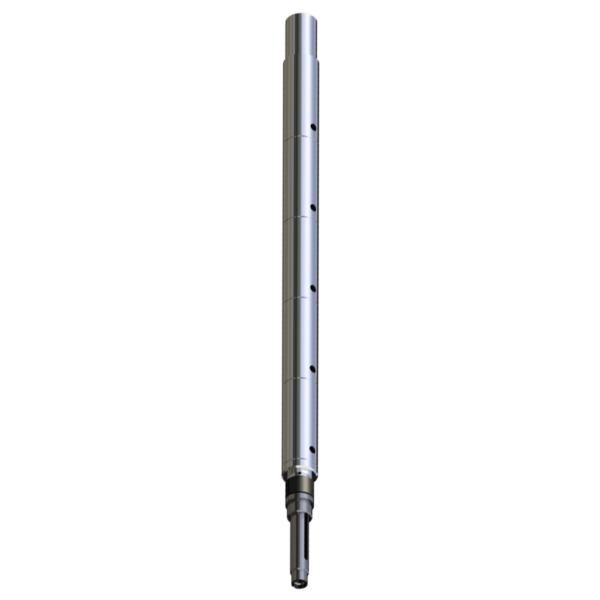

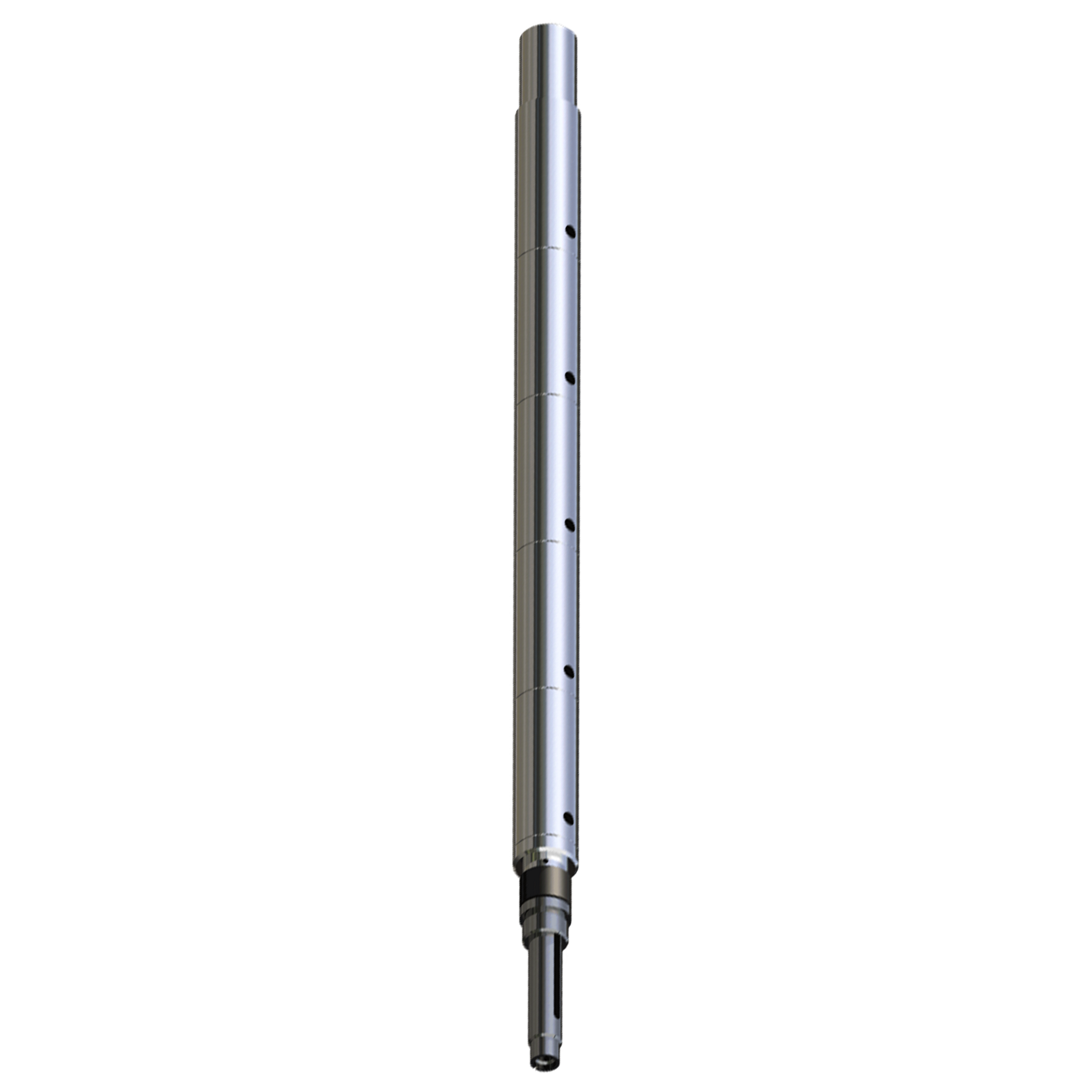

‘B-10’ & ‘B-20’ Hydraulic Setting Tool
‘B-10’ & ‘B-20’ Hydraulic Setting Tool
PRODUCT NUMBER: 30-010-XXXX-00
Renown’s ‘B-10’ & ‘B-20’ Hydraulic Setting Tool is a pressure-activated setting tool used to set retrievable plugs, permanent packers, bridge plugs, cement retainers or other types of completion equipment. The setting tool is connected to the end of the coiled tubing or pipe and run to depth. Pressuring up the tubing string activates the hydraulic pistons. The force multiplies as the pressure passes through each piston stage, providing the needed force to set the downhole equipment. Once the equipment is set, the ports of the setting tool are open, allowing the well to be pressure tested or circulated and providing pressure equalization of the tubing/annulus prior to retrieval of the string.
Strain in pounds to set pack on hydraulic setting tool
35000LBS SHEAR STUD | 40000LBS SHEAR STUD | 50000LBS SHEAR STUD | |||
PUMP PRESSURE | STRAIN OF FORCE | PUMP PRESSURE | STRAIN OF FORCE | PUMP PRESSURE | STRAIN OF FORCE |
500PSI | 15979LB | 500PSI | 28783LB | 500PSI | 34783LB |
625PSI | 12174LB | 625PSI | 24979LB | 625PSI | 30979LB |
750PSI | 8370LB | 750PSI | 21174LB | 750PSI | 27174LB |
875PSI | 4566LB | 875PSI | 17370LB | 875PSI | 23370LB |
1000PSI | 762LB | 1000PSI | 13566LB | 1000PSI | 19566LB |
1150PSI | 0 | 1125PSI | 9762LB | 1125PSI | 15762LB |
1250PSI | 5957LB | 1250PSI | 11957LB | ||
1375PSI | 2153LB | 1375PSI | 8153LB | ||
1446PSI | 0 | 1500PSI | 4349LB | ||
1625PSI | 544LB |
