Cement Multi-Spot
Cement Multi-Spot
PRODUCT NUMBER: 10-152-XXXX-00

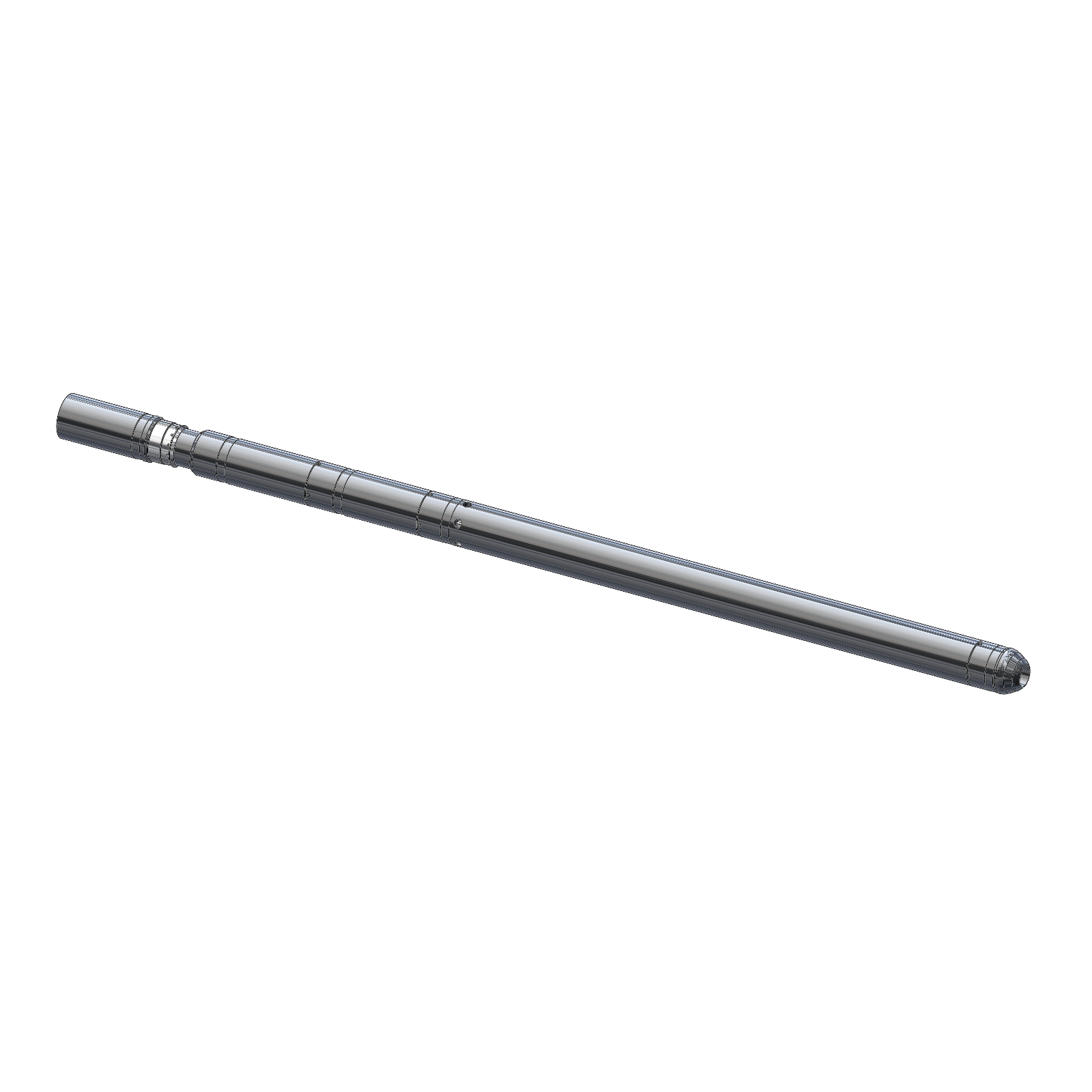

Renown’s Cement Multi-Spot tool allows multiple cement dart plugs to be deployed down drill pipe or tubing without the need to round trip pipe. A unique dart system is pumped and captured within the plug catcher located in the bottom hole assembly. The standard plug catcher allows for 3 darts, with custom length catchers available for additional cement stages. An integrated internal float valve ensures no flow back up the pipe string and a precautionary integrated circulation port at the top end of the assembly to ensure circulation is always available.
Features
- Circulation by-pass drain.
- Internal drill pipe float valve.
- Unique Renown cement dart and plug.
- Multiple cement stages. 3 stages standard. Additional stages upon request.
- Adjustable trigger pressure settings.
- 4″ FH (NC40) Box connection, compatible to DS-40 Pin. Optional 4″ IF Box connection with a crossover.
