Model ‘HDO-2’ Hydraulic Packer

Model ‘HDO-2’ Hydraulic Packer

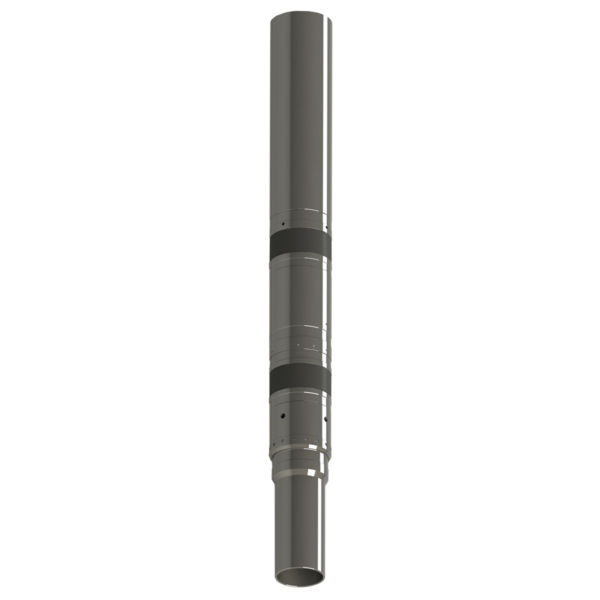

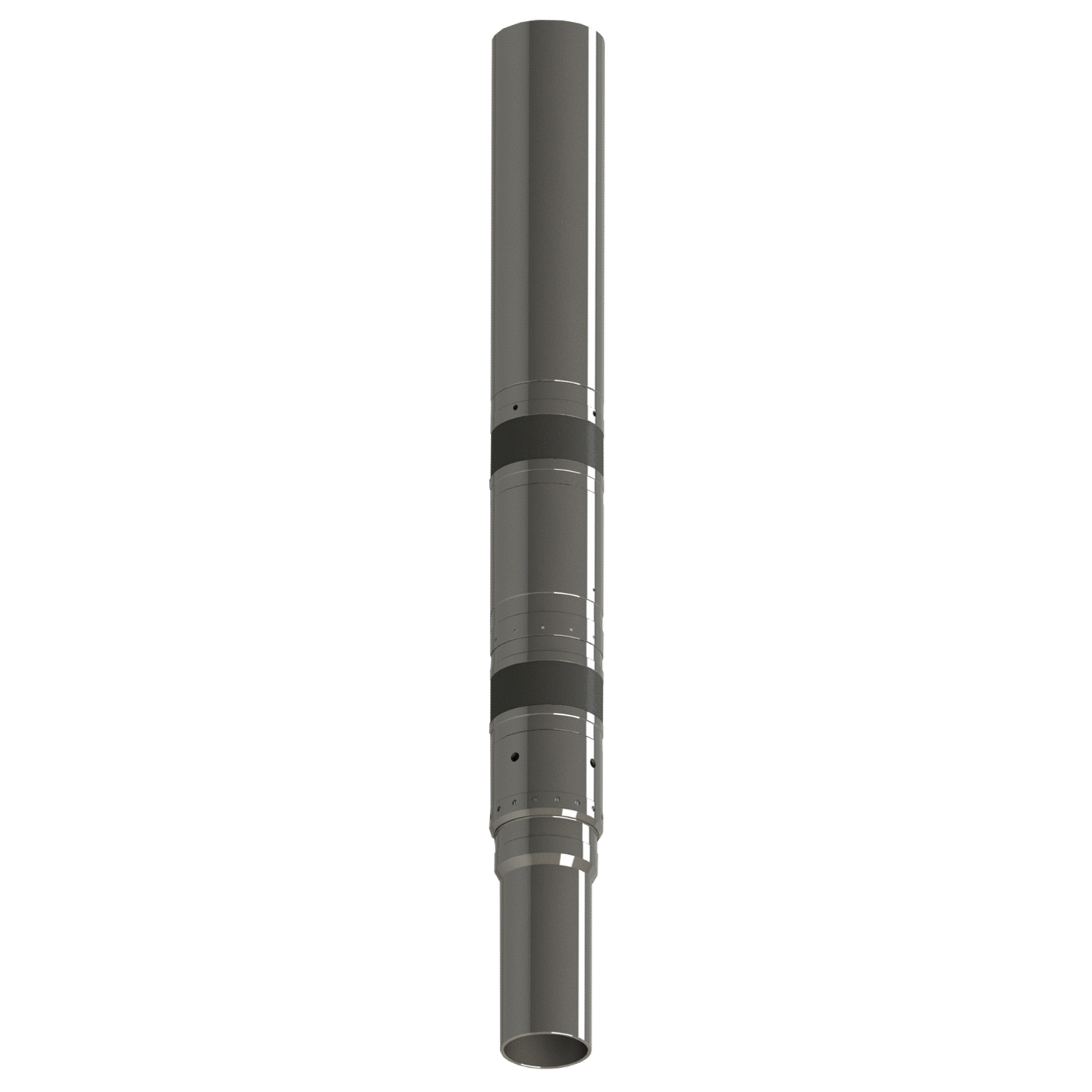

Renown’s Model ‘HDO-2’ Liner Packer is an extremely rugged hydraulic set liner top.  Like the standard ‘HDO’ with the addition of having a secondary internal piston duplicating piston force for pack-off and allowing smaller running diameters.  This system is often run in tandem with the ‘RIP’ plug to utilize a single trip isolation system to complete a well.  The large piston area compresses both individual elements creating a tandem seal.  This allows a significantly stronger seal area with maximum pack off force making it a superior horizontal liner packer.

Third party thermal testing has been completed to prove a capable pressure test when scrubbing up and down the casing walls due to thermal expansion and contraction in environments over 330°C (626°F).


  • Dual Elements creating a tandem seal
  • Open hole sealing capability
  • Adjustable Shear
  • Thermal Capable
  • Sets in high debris well bore
  • Dual slip system available
  • Can be ran in tandem with Renown’s ‘RIP’ plug system (Patented)
  • Hydraulic set
  • Full bore design for no restriction in liner
  • High pack-off on element system for better seal
  • All shoulders are bevelled for easy entry of downhole equipment into the liner top
  • Upper Tieback Barrel can be built in .5m intervals to a maximum of 3.5m
