‘HDSR-FT’ Feed-Thru Liner Packer
‘HDSR-FT’ Feed-Thru Liner Packer

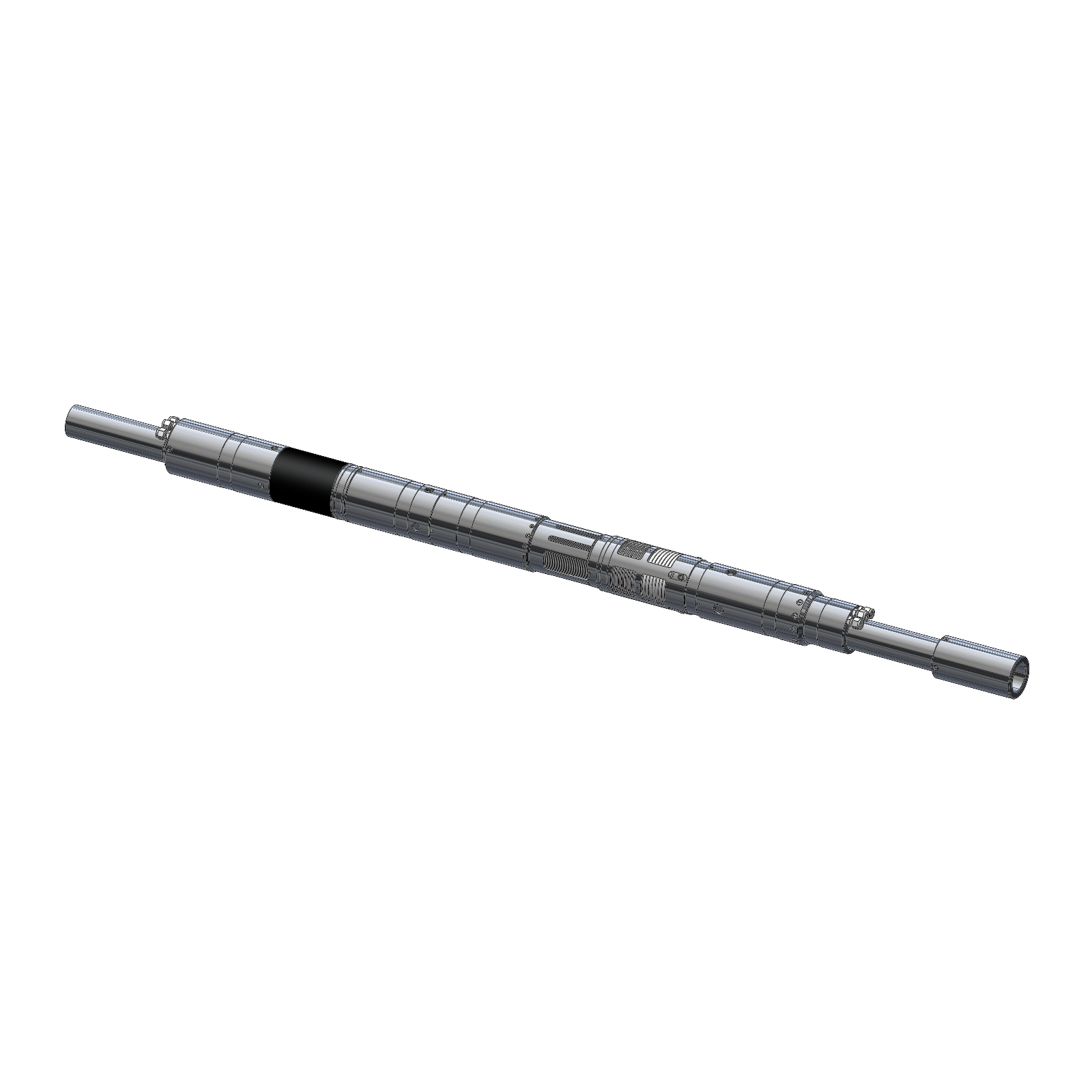

Renown’s ‘HDSR-FT’ Feed-Thru Liner Packer is a hydraulic set and tension release retrievable liner packer, with control line feed-thru capability to accommodate chemical injection, downhole instrumentation, or remote operation of sub-surface production control equipment.
Features
- Deployed on tubing with Renown’s Pump Out Plug on bottom (20-043-XXXX-00), no running tool required to set or release.
- Hydraulic set on tubing and pull to release. Adjustable setting pressure and shear release.
- Multiple packers can be set on a single string.
- Bi-directional slips.
- Control line fittings are surface testable for reliability.
- Up to three 1/4” or 3/8” control lines, dependent on size.
- Available in a variety of elastomers, NBR and Viton, rated up to 464°F (240°C).
- Multiple sizes available and custom sizes upon request.
