K-valve Running Tool
K-valve Running Tool

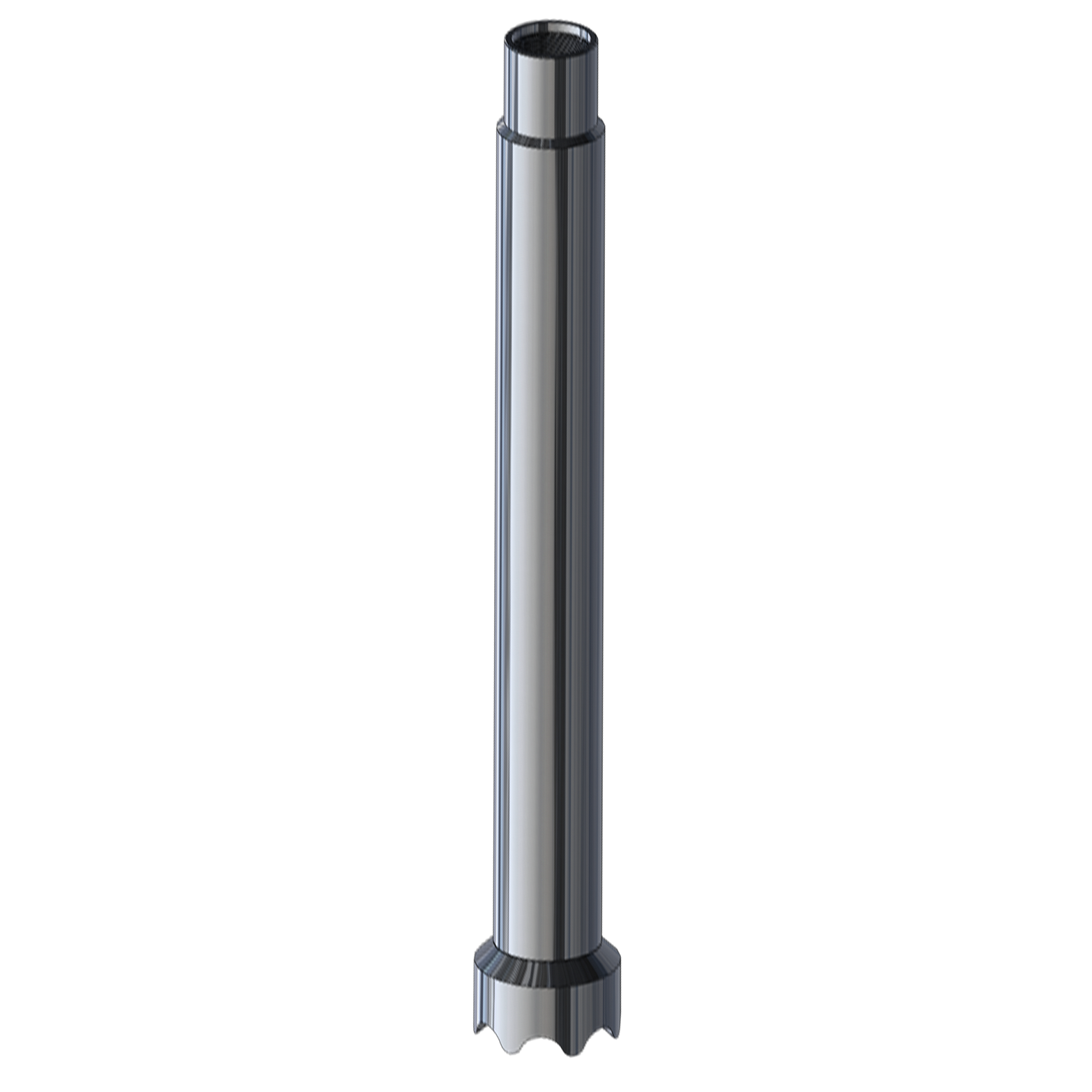

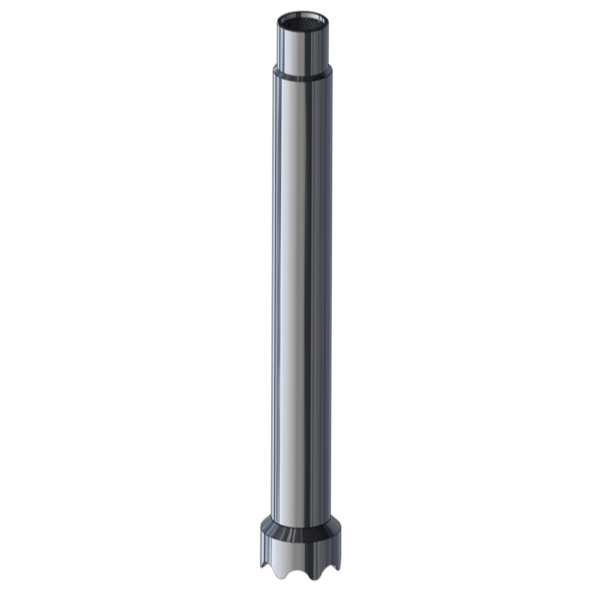

The K-Valve Running Tool is ran in tandem with the K-Valve itself. The K-Valve Running Tool has an internal J-system that allows auto rotation onto the packer and K-Valve down hole and utilizes a left hand release. Can be ran with different bottom centralizers depending on casing size.
SIZE | O.D. | CONNECTION | PART # |
| 2 3/8” 60mm | 3.75”-4.5” 95.3mm-114mm | 2 3/8” EUE | 10-009-2300-00 |
| 2 7/8” 73mm | 4.5”-8.19” 114mm-208mm | 2 7/8” EUE | 10-009-287-000 |
Features
- Interchangeable Bottom Guides
- Rugged J-System
- Premium Connection available
- Can be ran with extremely large packers
