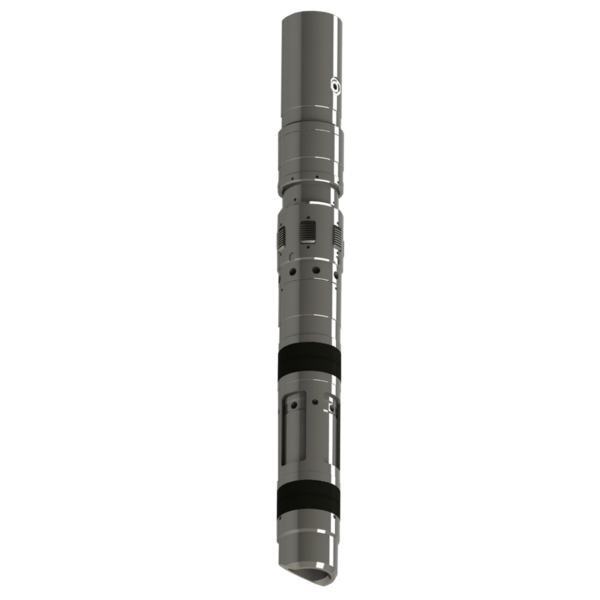

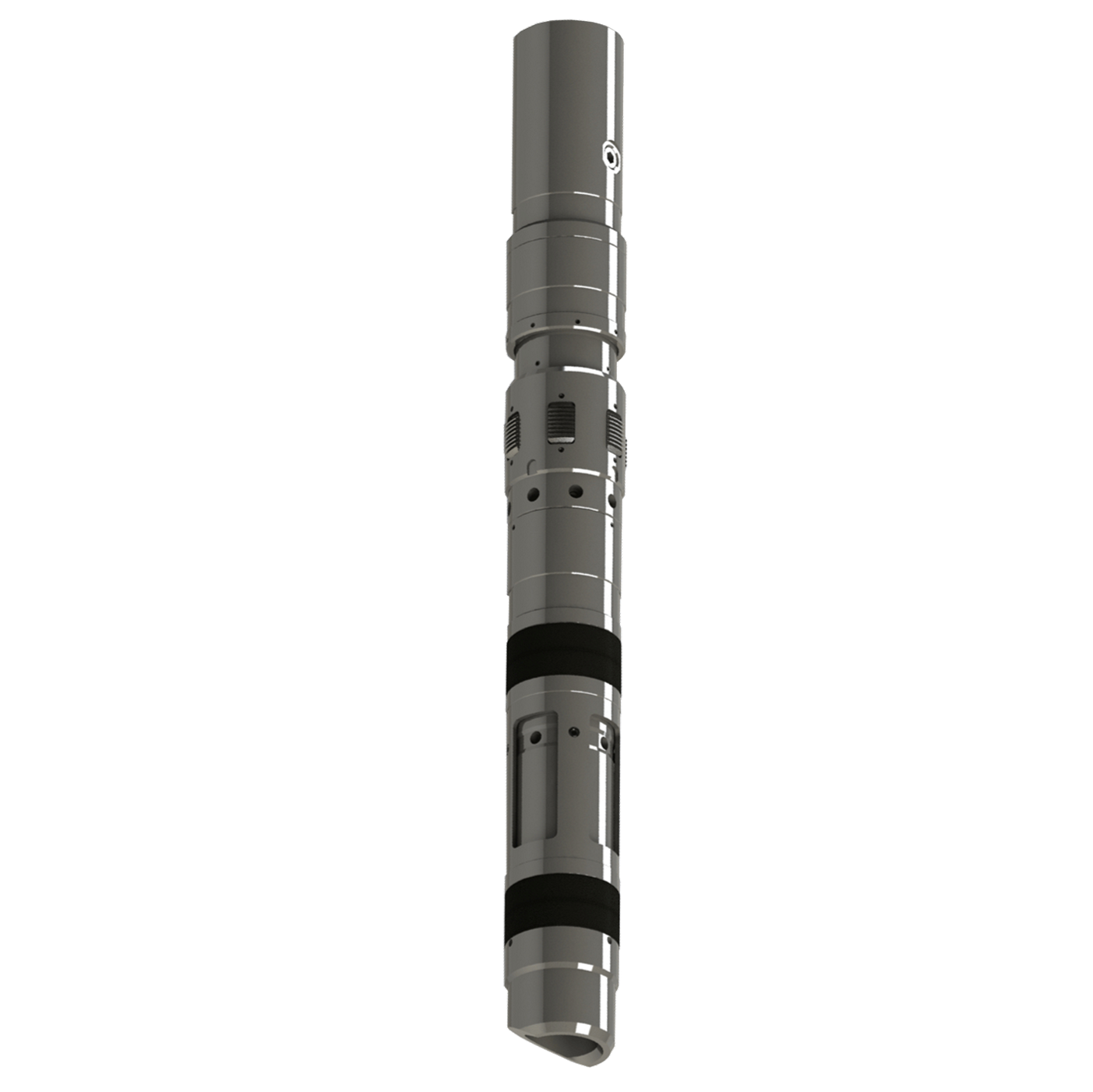

RDS Liner Running Tool
RDS Liner Running Tool
The ‘SC’ Hydraulic Set Liner Hanger is available in both single or dual cone (DC) configurations depending liner weights and applications. This unique system features an optional safety reset spring if an accidental set is to occur. The ‘SC’ Liner Hanger is commonly used for cement-in Liner applications. It is quite often ran in tandem with a mechanical style Liner Packer. The ‘SC’ and ‘DC’ Liner Hangers are set using Renown’s model ‘AP’ setting tool with seal assembly. The ECO series H-SC are available as a cost effective liner hanger for geothermal application.
Features
- Liners can be rotated in if required through the setting tool
- Full torque or a pre-set shear can be used to rotate the liner in through the setting tool
- Torque pin can be installed for safer, faster liner top installation
- Setting tool is built into the liner Packer/ Hanger to allow easier handling and pick up
- High temperature seals available if required
- Rotational release safety back up system
- Pressure activated drain system if RDS setting tool should plug off
- High flow rate circulating area
- Hydraulic set with adjustable pack off force
- Quick and easy redress if required
